PCB Inspection Methods: AOI, SPI, X-Ray, ICT & FCT

As electronic assemblies become more intricate, identifying manufacturing defects at an early stage has become critical for both product reliability and cost control. Early inspection can help identify process and assembly issues before later stages, but the benefit depends on the defect type, inspection method, process controls and acceptance plan. The numerical claims previously associated with IPC, IEEE and Prismark are not retained without traceable primary sources.

Map the inspection method to the project using the quality control, PCB assembly testing and assembly capabilities pages.

Evidence note: Inspection coverage depends on the board, package, process stage, test access and acceptance plan. The article does not use unsupported percentage claims; use the linked IPC references and the project quality plan for applicable criteria.

A systematic approach to quality control connects each inspection method to the product risk, process stage and acceptance plan. This guide explores the most common PCB inspection techniques, the equipment they use, their pros and cons, and how new technologies are transforming the field.

Key Takeaways

• Early defect detection can reduce rework and help identify risks before shipment when the method and acceptance criteria fit the issue.
• No single inspection method covers every defect; combine manual, optical, X-ray, electrical and functional tests according to the product risk and acceptance plan.
• AOI and AXI address different visibility limits; select AXI when hidden joints or internal features are in scope.
• ICT can provide targeted electrical coverage for a mature design; flying probe testing can be more flexible for prototypes and small batches.
• AI, machine learning and 3D inspection are evolving tools; evaluate them against representative data and project acceptance criteria.
• Using applicable IPC standards can provide shared acceptance language across the supply chain.

2. Core PCB Inspection Methods

Quality assurance on a PCB production line typically involves multiple inspection methods applied at different stages. The choice of method depends on board type, production phase, and the specific defects being targeted.

2.1 Manual Visual Inspection (MVI)

Manual Visual Inspection is one of the oldest and most accessible quality control techniques. Trained staff examine boards directly — often using magnification tools — to spot surface-level problems such as poor solder joints, misplaced components, damaged traces, polarity errors, or contamination.

Even though it seems basic, MVI remains a valuable first line of defense in many production settings due to its flexibility and the human eye’s ability to recognize unusual or subtle defect patterns.

Equipment: Magnifying lamps, stereo microscopes, borescopes, and adjustable lighting.

Advantages:

• Easily adapts to different board designs without programming
• Identifies a wide range of cosmetic and obvious defects
• Low initial cost, ideal for low-volume or prototype work

Limitations:

• Results vary with operator fatigue, skill, and experience
• Time-consuming and not practical for high-volume lines
• Cannot inspect hidden solder joints (e.g., under BGA or QFN packages)
• Prone to both missed defects and false alarms

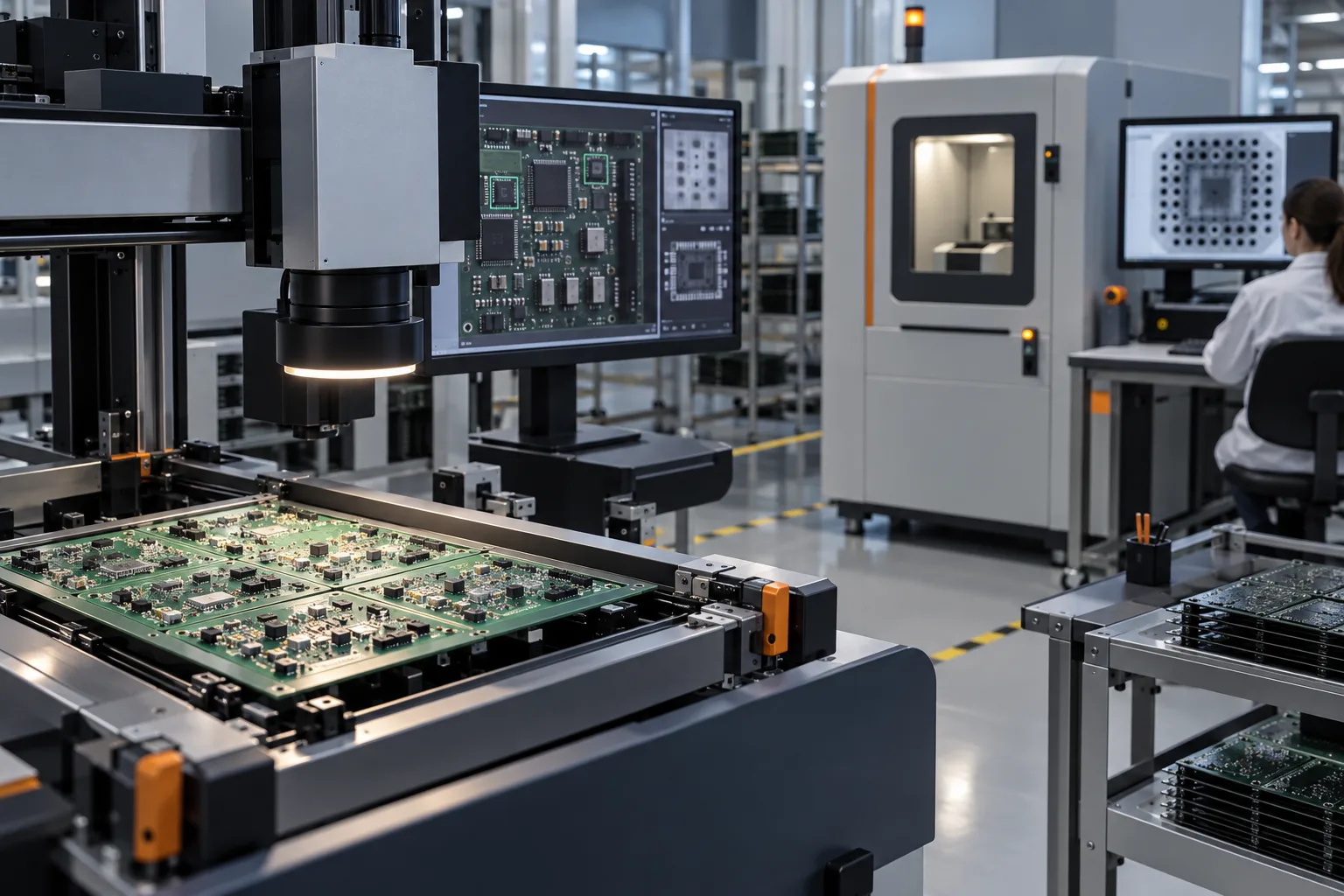

2.2 Automated Optical Inspection (AOI)

Automated Optical Inspection is a major step forward from manual methods. High-resolution cameras combined with image-processing software scan assembled PCBs and compare the captured images against a reference or design file. This enables fast, consistent detection of many surface-level defects.

AOI is often used after solder paste application, component placement, and reflow soldering. Modern systems can provide high throughput on suitable production lines, making them useful for high-volume manufacturing when the program and acceptance criteria are properly configured.

Equipment: 2D and 3D digital cameras, LED lighting arrays, and advanced image-processing software.

Advantages:

• High throughput and repeatable review when the recipe and acceptance criteria are controlled
• Detects many defects: shorts, opens, missing/misplaced parts, polarity errors, solder issues
• Reduces labor costs and supports efficient mass production

Limitations:

• Cannot inspect solder joints hidden under BGA, QFN, or similar packages
• Variations in component finish or lighting may cause false calls
• Requires significant programming effort for each new board design

2.3 Automated X-Ray Inspection (AXI)

Automated X-Ray Inspection is one method for detecting defects that are hidden from optical view. X-ray energy passes through PCB materials and components, producing images that reveal solder joint integrity, internal layer structures, and other features not visible to cameras.

Both 2D and 3D AXI systems exist. Three-dimensional systems create volumetric images, allowing thorough analysis of complex assemblies, including those with Ball Grid Array (BGA), Chip Scale Package (CSP), and Quad-Flat No-lead (QFN) components.

Equipment: X-ray sources, imaging detectors, and dedicated software for image reconstruction and defect analysis.

Advantages:

• Useful for evaluating hidden solder joints under BGA, CSP and QFN packages
• Finds internal defects such as voids, solder bridging, and shorts between inner layers
• Provides detailed analysis of solder joint characteristics, including fillet shape and voiding

Limitations:

• Higher equipment cost than MVI or AOI
• Slower inspection throughput than AOI
• Interpreting X-ray images requires specialized training
• Radiation safety protocols must be followed

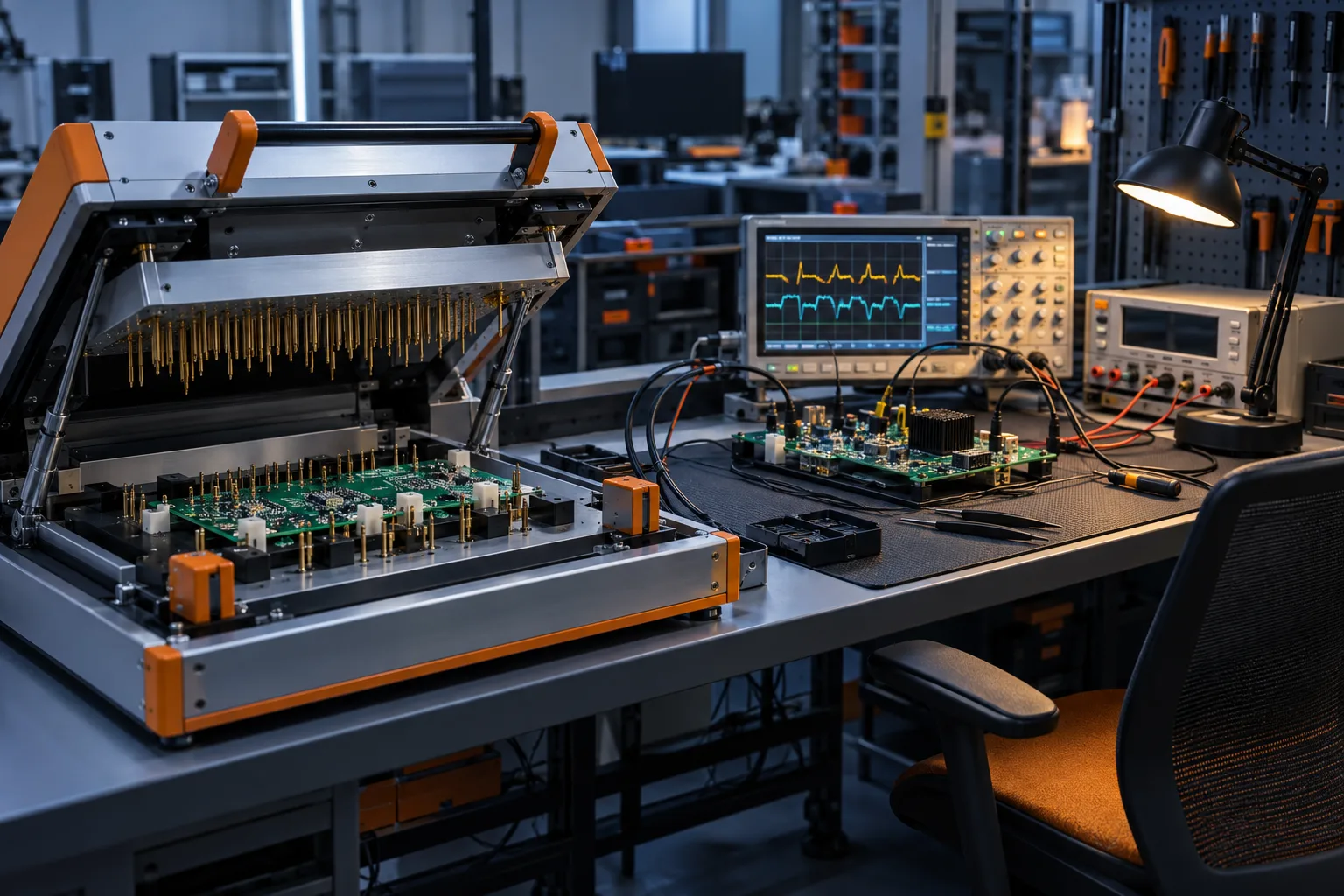

2.4 Electrical Testing: In-Circuit Test (ICT) and Flying Probe

Electrical testing methods verify that PCB circuits are electrically intact and that components function within specified parameters. Unlike visual inspection, these tests confirm connectivity and component performance rather than just appearance.

In-Circuit Test (ICT)

ICT uses a bed-of-nails fixture — a custom array of test probes that simultaneously contact designated test points on the PCB. The system measures individual component values (resistance, capacitance, inductance, etc.) and checks trace and connection integrity. ICT is well-suited to high-volume production, where the upfront fixture cost is offset by rapid test execution.

Equipment: Custom bed-of-nails fixture, test generation software, and dedicated test system hardware.

Advantages:

• High fault coverage for manufacturing defects
• Fast execution once the fixture and program are ready
• Precise fault localization simplifies rework

Limitations:

• Custom fixtures are needed for each unique PCB design, adding cost and lead time
• Requires dedicated test pads that take up board space
• Access challenges on high-density, fine-pitch boards
• Does not verify full circuit functionality under operating conditions

Flying Probe Test

The flying probe test uses movable robotic probes that travel across the board surface to contact individual test points. Since no custom fixture is required, this method is very flexible — ideal for prototype development, engineering changes, and low- to medium-volume production.

Equipment: Typically four to eight robotic probes, integrated vision systems for positioning, and test programming software.

Advantages:

• No fixture costs, reducing both upfront investment and lead time
• Easily adapted to different board designs and revisions
• Can access fine-pitch components

Limitations:

• Slower than ICT for large production volumes
• May provide lower fault coverage than ICT on certain board types
• Limited capability for testing power-on functionality

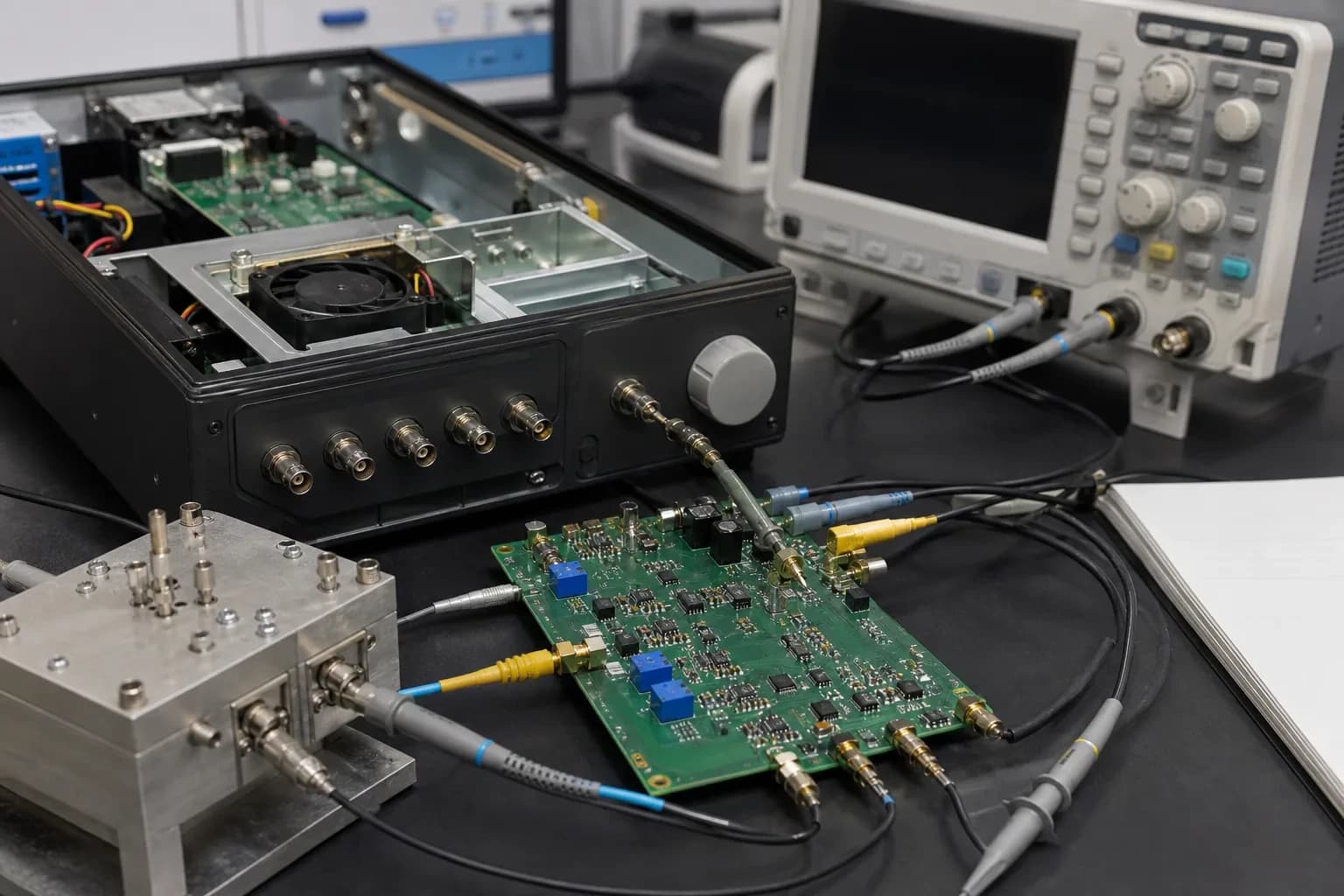

2.5 Functional Testing

Functional testing is usually the final stage of PCB inspection. Instead of examining individual components or connections in isolation, it evaluates the assembled board as a complete system under conditions that closely mimic its intended operating environment. This confirms that hardware, firmware, and software interactions work as designed.

Equipment: Custom test fixtures, power supplies, oscilloscopes, multimeters, load circuits, and specialized software for automated test sequences and data logging.

Advantages:

• Validates the PCB as a functioning system, not just a collection of components
• Catches failures invisible to other methods, such as timing issues or cross-component interactions
• Provides direct confidence in field performance

Limitations:

• Does not isolate individual component failures; root cause diagnosis can be complex
• Test routines and fixtures can be time-consuming to develop
• Defects found late in production are more expensive to rework

3. Inspection Method Comparison

The table below summarizes the main characteristics of each method to help with selection.

4. Emerging Trends and Advanced Technologies

The field of PCB inspection continues to evolve in response to increasingly complex board designs and tighter quality requirements. Several technological advances are expanding what inspection systems can detect and how efficiently they operate.

4.1 Three-Dimensional Inspection

Two-dimensional inspection has inherent limitations when evaluating solder volume, component coplanarity, or complex solder joint geometry. 3D AOI systems address this by using laser triangulation or structured light projection to measure component height and solder paste volume with greater accuracy. Similarly, 3D AXI systems generate volumetric images that provide an unobstructed view of internal structures, enabling more comprehensive analysis of hidden assemblies.

4.2 Artificial Intelligence and Machine Learning

AI and machine learning are increasingly being integrated into both AOI and AXI platforms. Rather than relying solely on fixed rule-based thresholds, these systems learn from large datasets of confirmed good and defective boards. The result is more accurate defect classification, reduced false call rates, and improved adaptability to new component types or process variations. AI-assisted inspection is an evolving area. Evaluate false-call performance using the equipment vendor's method, a representative dataset and the project's acceptance criteria rather than relying on an unsupported percentage.

4.3 Digital Traceability and Smart Manufacturing

In high-reliability industries such as medical devices and electric vehicles, the ability to trace every board through each production stage is as important as the inspection outcome itself. Modern inspection platforms increasingly support network connectivity and integration with Manufacturing Execution Systems (MES), enabling automatic data logging, image archiving, and the creation of a digital record for every inspected unit. This supports recall management, process optimization, and regulatory compliance across global supply chains.

4.4 Integrated Inspection Workflows

Rather than treating each inspection method as a standalone operation, manufacturers are moving toward integrated workflows in which data from AOI, AXI, SPI (Solder Paste Inspection), and electrical testing is aggregated and analyzed centrally. This holistic view enables faster identification of systemic process issues and provides a more complete picture of overall board quality than any single method can offer.

5. Choosing the Right Inspection Approach

Selecting appropriate inspection methods is a strategic decision shaped by several interdependent factors. No single technique is universally optimal; the best approach depends on the specific production context.

5.1 Production Stage

Inspection needs differ at each phase of assembly. Solder Paste Inspection (SPI) is applied before component placement. AOI is most effective after reflow soldering. AXI is deployed when complex packages require subsurface analysis. Functional testing serves as the final gate before shipment.

5.2 PCB Complexity and Component Type

Simple single-layer boards may be adequately served by MVI and basic electrical testing. High-density boards featuring fine-pitch BGAs, CSPs, or multilayer structures require AOI and AXI as a baseline, often supplemented by ICT or flying probe testing.

5.3 Production Volume and Cost Constraints

For high-volume production, the consistent throughput of AOI and the fault-coverage efficiency of ICT justify their higher setup costs. For prototype runs and low-to-medium volume production, flying probe testing and MVI provide the necessary flexibility without the overhead of custom fixtures.

5.4 Required Fault Coverage

Define which defect categories are most critical for the product. If hidden solder joints are in scope, include AXI or another method that provides the required subsurface evidence. If comprehensive electrical verification is required, ICT or flying probe testing is essential. In practice, layering multiple methods across the production process delivers the broadest fault coverage and the greatest protection against field failures.

6. Relevant Industry Standards

Adherence to recognized standards ensures that inspection criteria are consistent, objective, and aligned with customer expectations across global supply chains.

• IPC-A-610 — The most widely used visual inspection standard, defining target, acceptable, and defect conditions for electronic assemblies. BGA voiding limits are project- and class-specific; use the applicable customer, drawing and IPC requirements rather than a universal percentage.
• IPC-J-STD-001 — Addresses materials, processes, and workmanship requirements, complementing the visual criteria of IPC-A-610.
• IPC-6012 — Sets performance and qualification requirements for bare PCBs prior to assembly.
• For defense or space work, consult the applicable customer and government specification; confirm the current revision, applicability and evidence requirements.

Summary

Effective PCB inspection is not a single-step activity — it is a multi-layered quality strategy that spans every stage of the manufacturing process. From early manual checks and high-speed automated optical scans to subsurface X-ray analysis and final functional validation, each method contributes a distinct and valuable layer of defect detection.

As component density increases and packaging formats grow more complex, the role of advanced technologies — particularly 3D inspection, AI-driven defect classification, and digital traceability — will continue to expand. Manufacturers who invest in the right combination of inspection methods, guided by production stage, board complexity, volume, and fault coverage requirements, are best positioned to deliver reliable electronics while controlling the cost of quality.
