PCBArise coordinates PCB fabrication in Shenzhen and PCBA assembly in Zhongshan, Chongqing and Jiangxi. See what each base is listed to handle, then confirm the site and process for your order.
Review the published fabrication and assembly bases below, then confirm the production site and process scope for your own order. The image illustrates a factory floor; it is not a photograph of these four sites.
PCB fabrication for board designs whose stackup, material and process requirements fit the confirmed route.
Operating entity: Shenzhen Wenquan Dickson Electronics Co., Ltd.
Published address: Building A1, Area B, Ditang Industrial Zone, Agricultural Company, Shasan Community, Shajing Subdistrict, Bao’an District, Shenzhen, Guangdong, China
PCBA assembly for boards with agreed BOM, placement, inspection and test requirements.
Operating entity: Zhongshan Wenquan Electronic Manufacturing Co., Ltd.
Published address: 2nd Floor, Building 5, No. 105 Dongli Road, Torch Development Zone, Zhongshan, Guangdong, China
PCBA assembly for boards with agreed BOM, placement, inspection and test requirements.
Operating entity: Chongqing Wenquan Intelligent Technology Co., Ltd.
Published address: 50 Chanye Avenue, Pulu Subdistrict, Tongliang District, Chongqing, China
PCBA assembly for boards with agreed BOM, placement, inspection and test requirements.
Operating entity: Jiangxi Intelligent Equipment Co., Ltd.
Published address: 2nd Floor, Manufacturing Building, Zhixin Technology Park, No. 133 Yishang Avenue, Yichun Economic and Technological Development Zone, Yichun, Jiangxi, China
Location matters less than whether the assigned site can handle your board, parts, testing and delivery needs. These four questions make a facility discussion useful.
Ask which base fabricates the PCB, assembles components and performs any testing.
Check the stackup, material, package mix and tooling against what that base will use.
Discuss the inspection and electrical or functional tests your product needs.
Confirm the labels, reports, traceability and packaging your team expects.
A typical project moves from file review to bare-board fabrication, assembly and the checks specified for the order.
Check Gerber, stackup, BOM and drawings; resolve missing or conflicting details.
Make the bare board using the agreed material and construction.
Place and solder components using the agreed SMT, through-hole or mixed route.
Apply the checks included in the order and prepare the agreed shipping records.

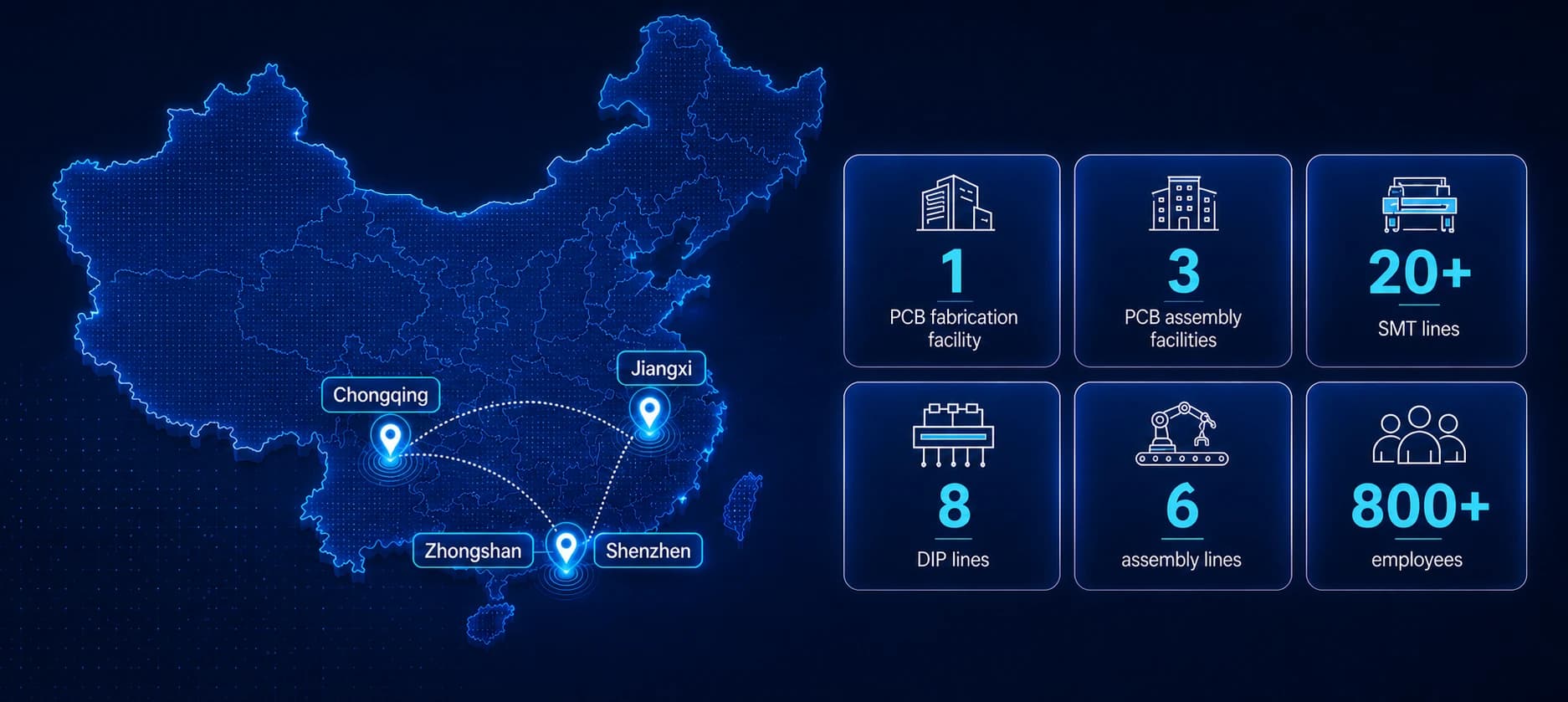

These published figures describe the wider production network. Available capacity and the right line for your design must be confirmed for a specific project.
SMT production lines
DIP production lines
assembly lines
component placements per month
These images illustrate the production and quality-control areas relevant to PCB and PCBA project planning.

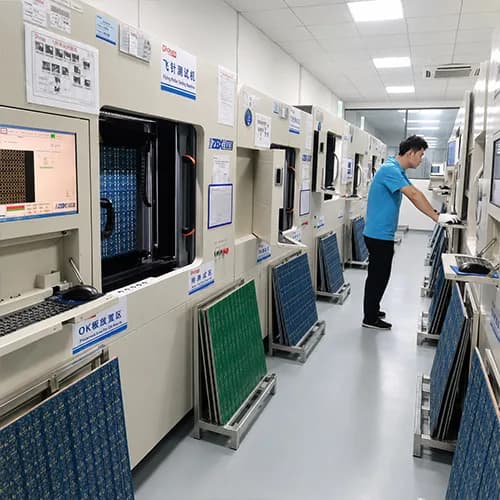

Representative equipment for PCB fabrication process planning and production.

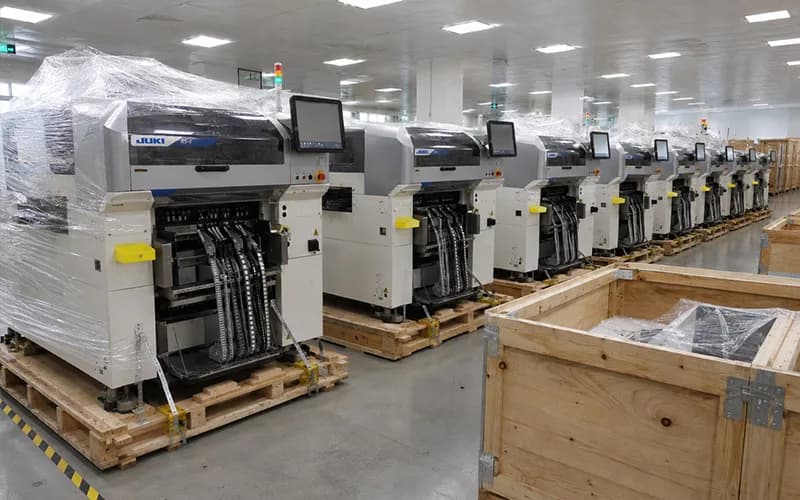

Representative SMT line equipment for PCB assembly production.

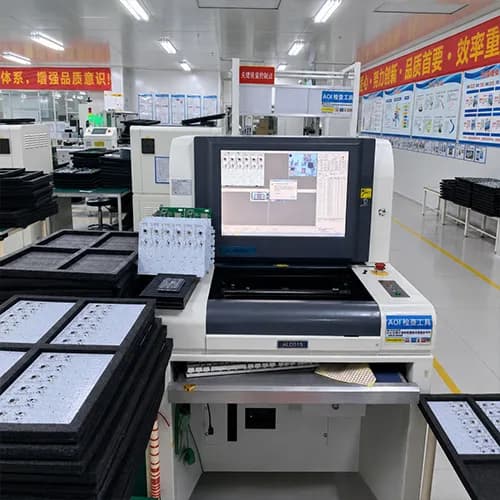

Representative X-Ray inspection equipment for relevant assembly requirements.

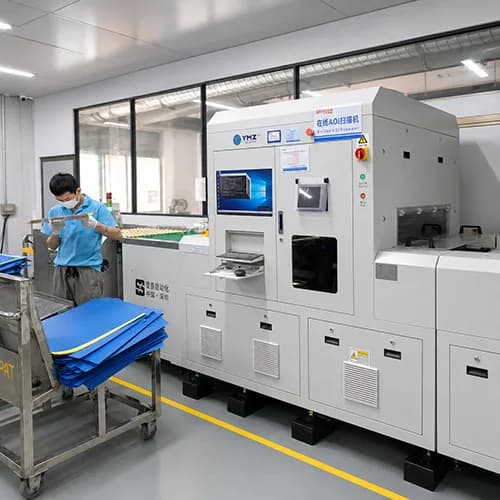

Representative automated optical inspection equipment for PCB assembly.

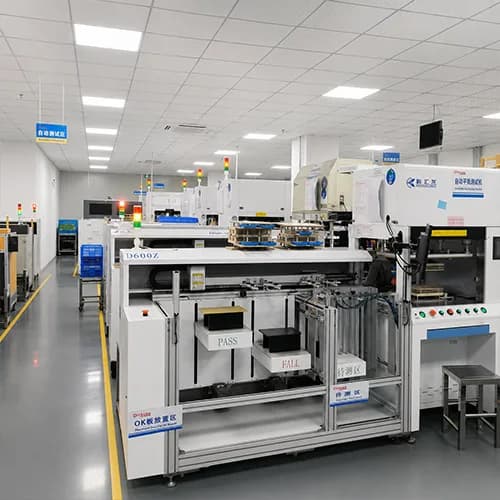

Representative equipment for project-specific testing and production release.

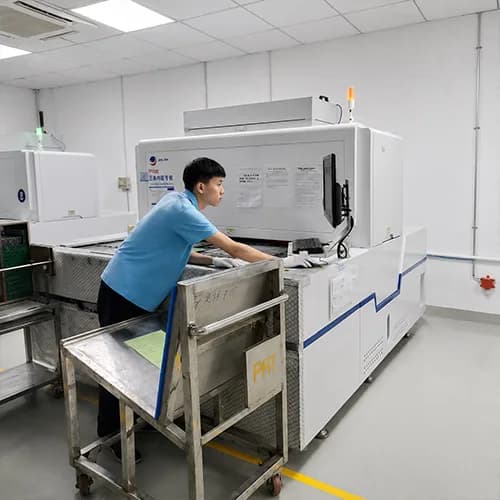

Representative automation and quality-control equipment in the production network.
Examples of fabrication inspection, engineering review, assembly and test activities. Ask which apply to your board.
Share your Gerber files, BOM, drawings or current requirements for engineering review and quotation.
