Quick answer
PCB panelization turns one or more board units into an array that can be fabricated, assembled, inspected, tested and separated. Define the unit outline, orientation, delivery state and separation constraints, then let the fabricator and assembler confirm rails, tooling features, fiducials and process clearances for their equipment. A designer concept is not a released manufacturing panel until ownership, dimensions and revision are approved.
A manufacturable PCB panel is more than repeated Gerber artwork. It is a temporary mechanical and data structure that must carry boards through fabrication, solder-paste printing, placement, reflow or other soldering, inspection, test, separation and delivery. The array therefore connects PCB design, CAM, assembly and purchasing decisions.
This guide owns the buyer and designer panelization decision. The PCB manufacturing page owns fabrication enquiries, the PCB assembly page owns assembly-route enquiries, and the PCB prototype page owns prototype fabrication. This article deliberately avoids universal rail widths, gaps, tooling-hole sizes or utilization promises because the approved values depend on the board and selected supplier processes.
Direct answer: how should a PCB be panelized?
Start with the controlled unit outline, stackup, quantity pattern, component keepouts and required delivery state. Choose a candidate orientation and separation concept, then ask both fabricator and assembler to review handling, rails, fiducials, tooling, support, soldering, inspection, test and depanelization. Release the array only after dimensions, ownership and revision are approved in the manufacturing package.
Separate three different meanings of panel
A designer array expresses the intended board orientation, count or mechanical relationship. A delivery panel defines how assembled or bare units should arrive, including whether rails remain and how units are identified. A fabricator production panel may combine tooling, coupons and manufacturing features used internally. These are not automatically the same artifact.
State which data you are supplying and who may change it. If the manufacturer is expected to create the array from a single-board dataset, say so. If the array is mechanically locked by enclosure, test or downstream automation, release a controlled panel drawing and identify dimensions that cannot change without approval. Never allow two competing panel definitions to appear in the Gerbers and drawing.
Panel inputs to confirm before quotation
| Input | Buyer or designer should define | Supplier should confirm |
|---|---|---|
| Unit identity | Part, revision, outline, stackup and required quantity | Dataset alignment and manufacturability |
| Array intent | Same-board or mixed design, orientation constraints and delivery state | Practical step, rotation, nesting and traceability route |
| Handling | Known downstream conveyor, fixture or pallet constraints | Process rails, support and equipment datum needs |
| Registration | Critical packages and any product datum requirement | Global, unit or local fiducials appropriate to the process |
| Separation | Permitted edge condition, sensitive areas and post-separation use | Score, routed tab or other approved method and process allowance |
| Acceptance | Bad-unit policy, identifiers, test state and packaging | How the proposal preserves the agreed evidence and delivery state |
Design the array for the complete assembly path
Outline, orientation and support
Begin from an exact 1:1 unit outline and identify slots, cutouts, edge connectors, overhanging parts and mechanical datums. Orientation can affect conveyor support, soldering access, component shadowing, inspection and separation. Small, thin or irregular boards may need a temporary frame or pallet, but the actual solution belongs to the selected process review.

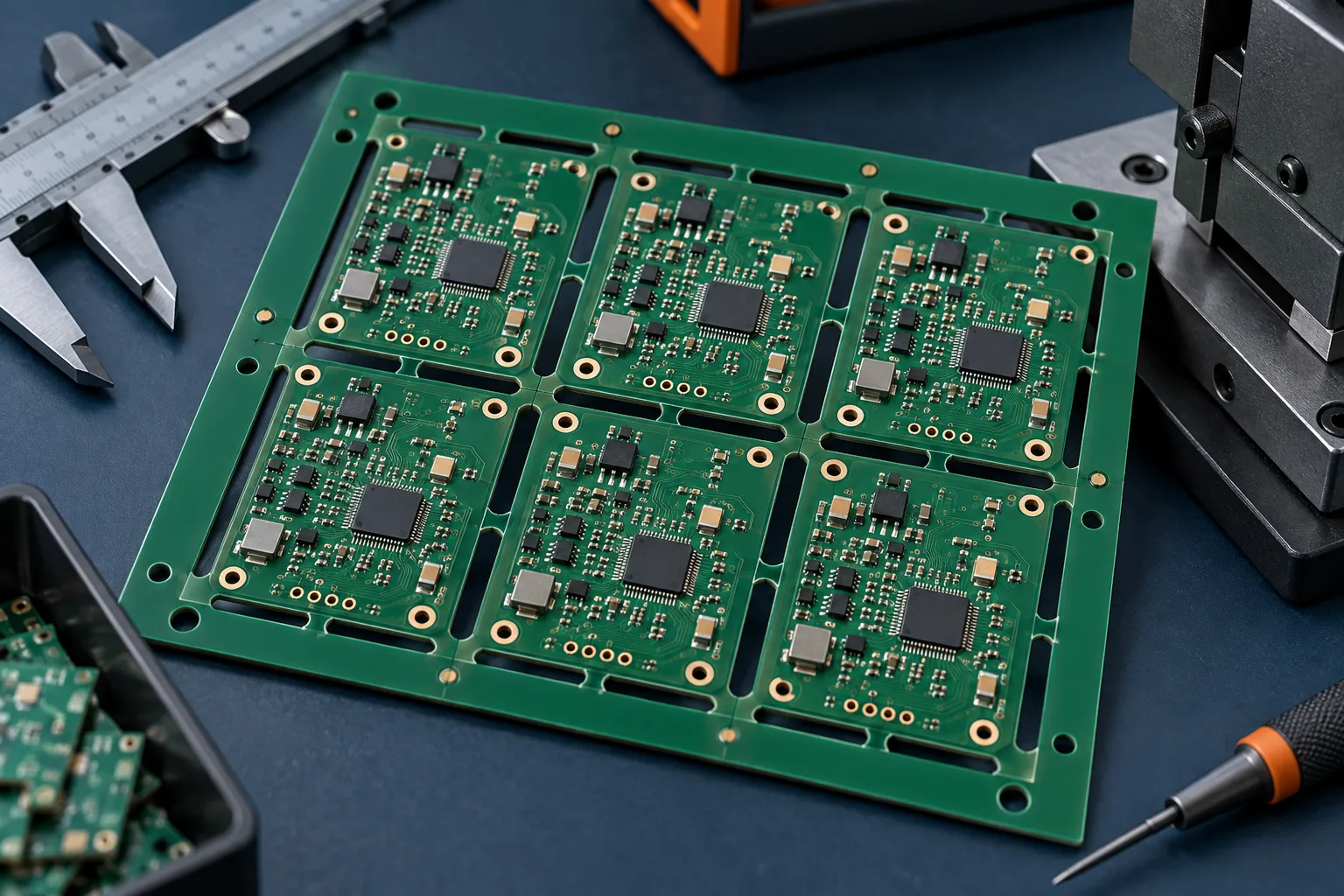

Rails, tooling features and fiducials
Rails can provide handling edges and carry tooling holes, fiducials, labels or coupons. They are functional only when their location and geometry match the equipment and downstream steps that use them. Global fiducials can locate the panel; unit or local fiducials can support finer registration where the assembly process needs them. IPC-2221B's public contents include board profile, fiducial and panelization topics, while supplier guidance repeatedly tells designers to confirm the exact implementation with the manufacturer.
Component and copper clearance
Mark components, copper, test points, connectors and mechanical features near every routed or scored edge. Separation can load the board and nearby joints, while routing and scoring need process space. Do not copy a clearance number from an unrelated supplier. Give the proposed supplier the part geometry and post-separation edge requirement, then record the accepted keepout in the controlled drawing.

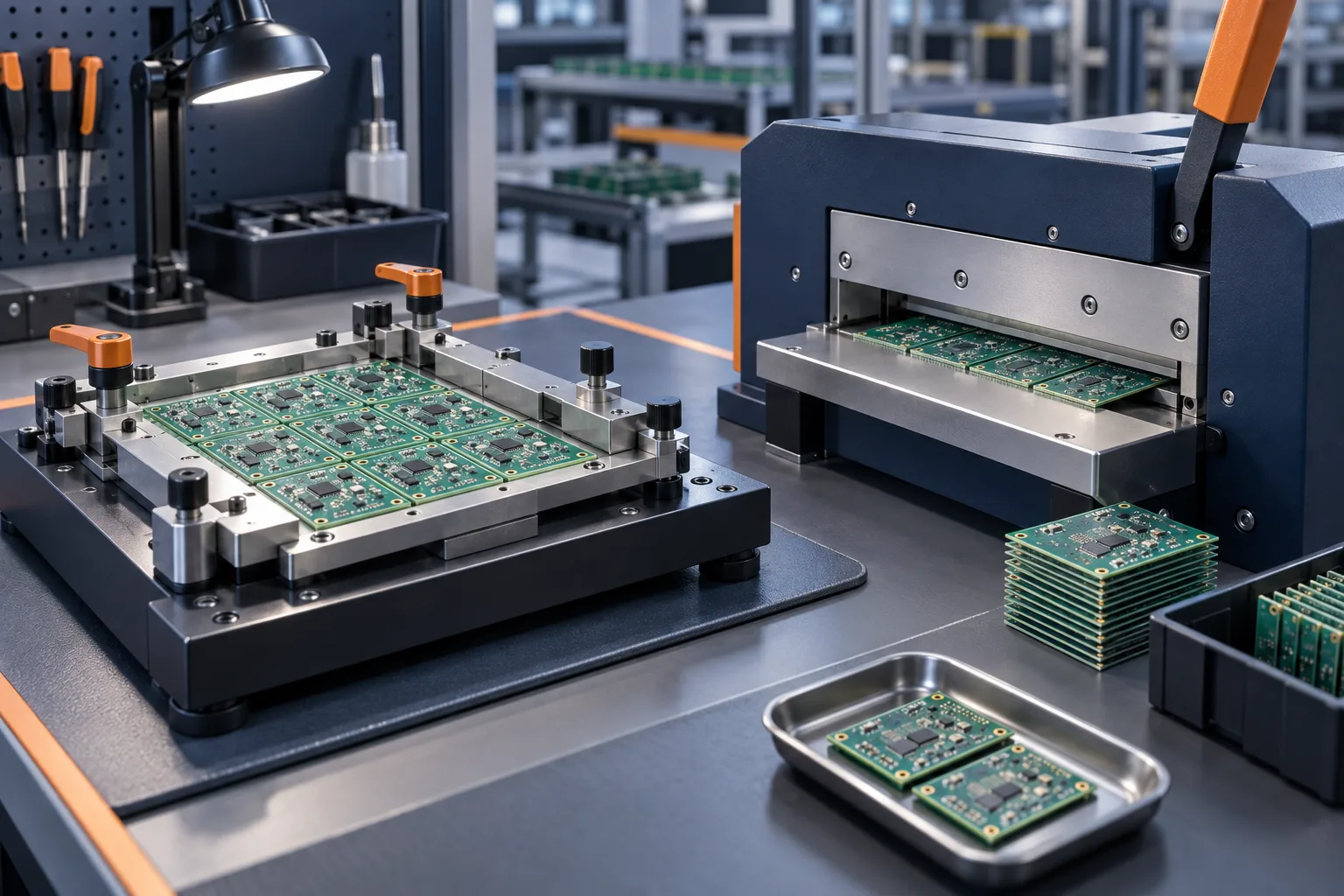

Compare separation approaches by the real constraint
| Approach | Useful question | Review before release |
|---|---|---|
| V-score concept | Can required separation follow suitable straight lines? | Board geometry, edge keepout, residual web, break method and stress-sensitive features |
| Routed tabs | Does the outline or edge condition require routed separation? | Tab and perforation locations, support, tool access, edge finishing and component clearance |
| Panel retained for delivery | Must test, coating, integration or customer handling occur before separation? | Rail-removal ownership, identifiers, bad-unit handling, packaging and final delivery state |
Neither branch guarantees lower cost or better utilization. More units per array may change laminate use, assembly handling, test access, defect disposition or separation work. Compare quotations only after the panel basis and included rail removal, inspection, testing and packaging are the same. Use the PCB quote comparison checklist to keep those differences visible.
Prototype panels and production panels answer different questions
A prototype may use a supplier-created array to support fabrication or assembly even when the buyer orders only a few units. That array can reveal outline, handling, support and separation issues. It does not automatically become the released production panel. Production may change cadence, stencil strategy, traceability, fixture interaction, test flow, packaging or the number of accepted units carried together.
When a prototype panel works, capture the actual revision and any approved changes. Before repeat production, review whether the same unit orientation, rail ownership, fiducials, breakaway method and delivery state still serve the process. Keep the reason for each controlled feature so a later CAM optimization does not remove a downstream requirement.
Panel review and release flow
- Release one unit dataset with outline, drill, stackup, revision and quantity intent.
- Identify assembly handling, critical components, test, separation and delivery constraints.
- Ask the responsible fabricator and assembler to propose or review the array.
- Resolve rails, fiducials, tooling, orientation, breakaway, bad-unit and packaging decisions.
- Confirm whether the buyer or supplier owns the panel drawing and changes.
- Release one approved panel revision and keep feedback with the next order baseline.
PCB panelization file checklist
- Single-unit fabrication data, NC drill and exact board outline are current and aligned.
- Panel drawing or array instruction states part number, revision, unit count and orientation.
- Board-to-board and rail dimensions are controlled where the buyer owns them.
- Score, route, tab, perforation and rail-removal intent is unambiguous.
- Tooling holes and fiducials are defined by function and reviewed for the chosen process.
- Component, copper, connector and test-feature keepouts near edges are visible.
- Bad-unit marking or acceptance policy, identifiers and delivered state are stated.
- Fabricator/assembler changes require the named buyer approval where applicable.
For a project-specific review, send the unit dataset, desired quantity, any proposed array, assembly drawing, component-edge constraints, test or fixture needs and required delivery state through Get a Quote. A DFM review can then identify which panel decisions remain open before release.
Engineering review
Prepared and reviewed for project use
Engineering Director
Senior Quality Engineer
Review scope: technical accuracy, evidence wording, standards references, internal links and release readiness. Project requirements remain subject to the released files, applicable acceptance criteria and agreed test documentation.
FAQ
Questions engineers ask before release
What is PCB panelization?+
PCB panelization arranges one or more circuit-board units in a temporary array for fabrication, assembly, inspection, testing, separation or delivery. The array can include rails, tooling features, fiducials, labels and breakaway structures.
Should the PCB designer or manufacturer create the panel?+
Either can, but ownership must be explicit. Designers should control product-critical geometry and downstream constraints. Manufacturers can propose equipment-specific rails, tooling and spacing. The approved drawing and revision should show who may change what.
How wide should PCB panel rails be?+
There is no universal rail width for every supplier and process. The fabricator and assembler should confirm it from the panel size, board geometry, conveyor, stencil, fixture, fiducial, support and separation requirements.
Should I use V-scoring or routed tabs?+
Choose from board outline, edge condition, component and copper clearance, separation stress, handling support and the supplier's process. Straight score lines and routed breakaway structures solve different geometry and delivery needs.
Are tooling holes and fiducials the same thing?+
No. Tooling holes can locate or hold a panel mechanically. Fiducials are optical reference features used by equipment such as printers or placement systems. Their number, location and design must match the selected process.
Can a prototype panel be reused for production?+
It can be a starting point, but re-review it against production cadence, handling, stencil, fixtures, inspection, test, traceability, separation and delivery requirements. Release it as a controlled production revision only after those decisions are approved.
